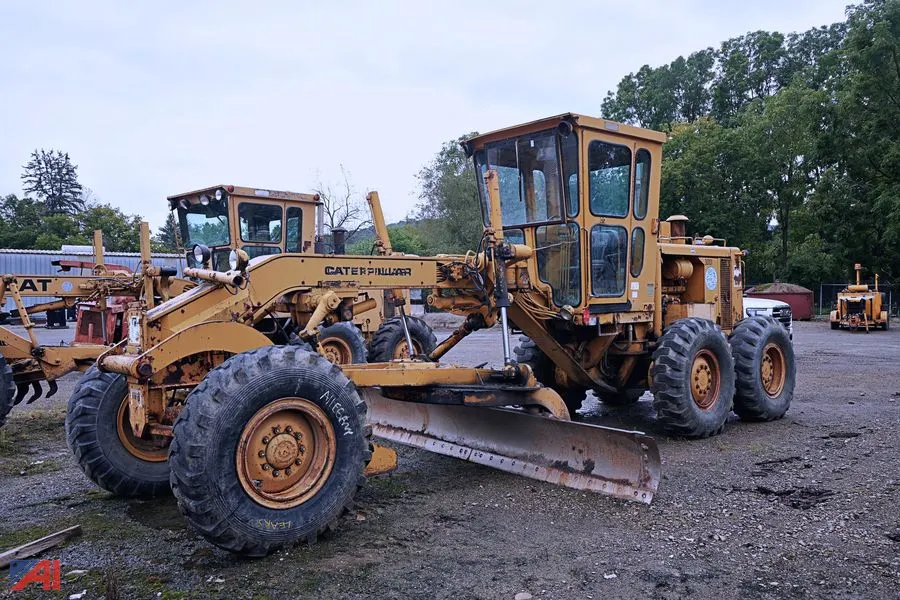

1974 Caterpillar 12G Motor Grader



Fleet # -
Year - 1974
Make - Caterpillar
Model - 12G
Body Style - Motor Grader
VIN/SN - 61M1789
Odometer Numbers -
Hours - N/A
Engine Make/Model - 3306PC
Cyl - 6
Fuel Type - Diesel
Transmission Name -  6 forward and 6 reverse speeds
Transmission Type - Direct-drive power shift
Single Axle/Dual Axle - Tandem Axle/Single Wheel
Tire Size/Type - 14.00-24
Tire Condition - Fair
Plow Size -
Dump Box Size -
Drivetrain - 6x4
GVWR - Standard Operating Weight (Total): 27,998.8 lbs

Does the unit operate? - Yes
Does the vehicle start? - Yes
Are keys available? - Yes
Ownership Information - Bill of Sale Only (No Title)
Mechanical Condition - Poor
Mechanical Notes - It runs and operates but mechanical poor. bidders are encouraged to inspect
Body Condition - Fair
Body Notes - Solid with average rust and wear, front cab glass cracked, view images
Interior Condition - Poor
Misc Info - Interior is poor to fair for age. Front Scarifier with an 11-tooth front V-type scarifier, Moldboard is a standard 12-foot earthmoving blade type, Circle Diameter: 60.3 inches with full 360-degree rotation.



The following general information is web-sourced and may contain variances from the subject unit:

The 1974 Caterpillar 12G motor grader is a highly durable and classic machine. Representing one of the early production years for the legendary "G-Series," this model revolutionized the market by shifting from old mechanical controls to hydraulic actuators, adding an articulated frame, and placing the cab over the rear frame for better visibility.   The Engine: Cat 3306PC (S/N 3N24729) The Caterpillar 3306 PC (Pre-Combustion Chamber) engine is a legendary, heavy-duty workhorse. The exact serial number falls perfectly within the early 3N-series vehicular block matched to early 12G frames.

• Configuration: 10.5-liter (638 cu in), inline 6-cylinder diesel.
• Power Output: Delivers 135 net horsepower at a rated 2200 RPM when installed in the 12G.
• Aspiration: Naturally aspirated or early turbocharged, depending on the exact build, featuring mechanical fuel injection with a pre-combustion chamber design for reliable fuel burn in varying temperatures.
• Bore & Stroke: 4.75 in x 6.0 in (121 mm x 152 mm).

The Transmission Your missing transmission specification is a Cat-built direct-drive power shift transmission.

• Gears: 6 forward and 6 reverse speeds controlled by a single lever to the right of the operator.
• Performance: Allows a maximum travel speed of roughly 25.5 mph (41 km/h) in both forward and reverse.
• Controls: Includes a foot-operated inching pedal for high-precision, close-quarter maneuvering. It features an automatic lock mechanism preventing movement if started in gear.

Moldboard (Blade Assembly) The machine comes equipped with a standard 12-foot earthmoving blade built from high-tensile structural steel.

• Dimensions: 12 ft wide x 24.1 in high x 0.9 in thick.
• Max Depth of Cut: 17.8 inches.
• Side Shift Range: Hydraulic side shift moves 26.4 inches to the left and 20.5 inches to the right.

Circle & Blade Linkage The circle group is hydraulically controlled, enabling complete rotation and aggressive blade angles.

• Diameter: 60.3 inches with full 360-degree rotation.
• Reach Options: Left max reach outside tires is 72.1 inches; right max reach is 73.7 inches.
• Blade Tip Angles: 90 degrees front/rear tilt adjustment for scraping or grading.

Core Features & Attachments

• Front Scarifier: Equipped with an 11-tooth front V-type scarifier used to break up asphalt, hard packed clay, or rocky soils before the blade passes over.
• Tires: Riding on large 14.00-24 heavy-equipment tires, standard for maintaining traction over raw, loose grades.
• Frame Articulation: Features a 50-degree articulation joint allowing tight turn radiuses (approx. 24 feet) while working banks or curves.
• Hydraulic System:
  A closed-center, constant-pressure system running a variable displacement piston pump pushing up to 51 gpm.
